Our Products
Fittings
Our extensive range of products consists of seamless and welded fittings. Our fittings all meet ANSI and API standards and are manufactured to meet each customer’s specs.
Self-reinforcing branch outlet fittings
welded, socket, reinforced nipples and flanged outlets. Design code: ASME B31.1, B31.3, B31.4, and B31.8. Manufacture conforming to standards ANSI B16.11 - B36.10 - BS 3799, MSS-SP83. Material: carbon steel, alloy steel, stainless steel. Pressure rating up to 6000 Lbs. Size from 1/2" to 42".

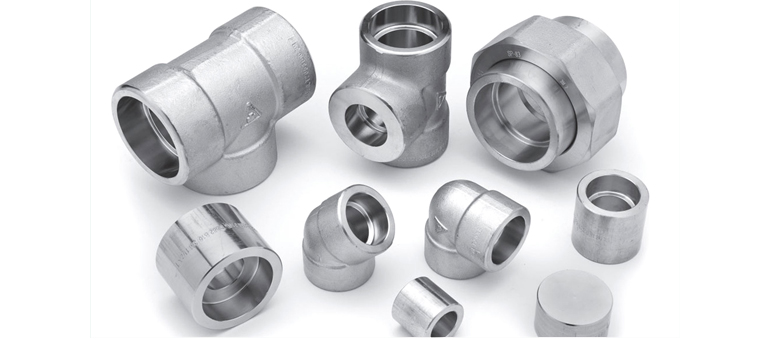

Forged fittings threaded and socket-weld
Elbows, tees, caps, hex. Head plugs, crosses, straight couplings, half couplings, reducing couplings, hex. Shoulder nipples, reducing hex. Shoulder nipples, straight nipples, swage nipples, M/F reducing bushings, street elbows, and unions. Manufacture conforming to standards ANSI B16.9, B16.10, B16.11, B16.25, B16.28, B36.10, BS 3799, MSS-SP-75, MSS-SP-83. Material: carbon steel (ASTM A 105, A350 LF1), alloy steel (ASTM LF3, A182 F5A, A182 F11, A182 F22), stainless steel. Pressure rating: 3000 - 6000 Lbs.Size from 1/4" to 4".

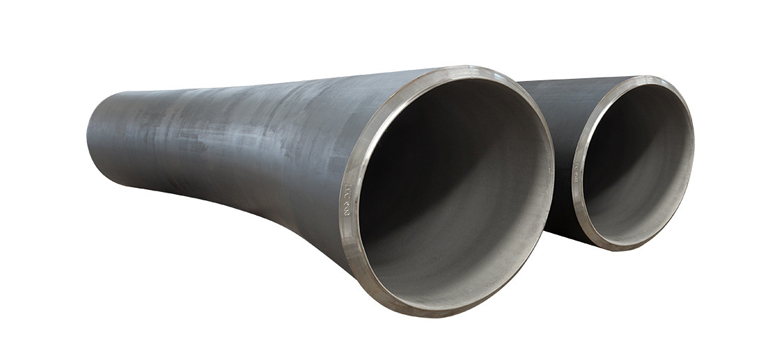

Hot Induction and Cold process Bends for pipeline
with or without 3-LPE coating, with or without tangent segments. Manufacture conforming to standards ANSI B16.49 and MSS-SP-75. Material: carbon steel API 5L X52, X60, X65, X70, X75. Size up to 60". Pressure rating up to SCH 160
Butt weld pipe fittings seamless and welded
LR and SR 45° elbows, LR and SR 90° elbows, LR and SR 180° return bends, equal tees, reduction tees, caps, concentric reducers, eccentric reducers, etc. Manufacture conforming to standards: ANSI B16.9, B16.10, B16.11, B16.25, B16.28, B36.10, MSS-SP-75, and MSS-SP-83. Materials: carbon steel (ASTM A234 WPB, A234 WP1, A234 WP11, A234 WP22, WP5), alloy steel (A234 WP1, A234 WP11, A234 WP22, WP5), steel for low temperature service (A420 WPL6, A420 WPL3), stainless steel. Pressure range up to SCH 160 Size from 1/4" to 60".
